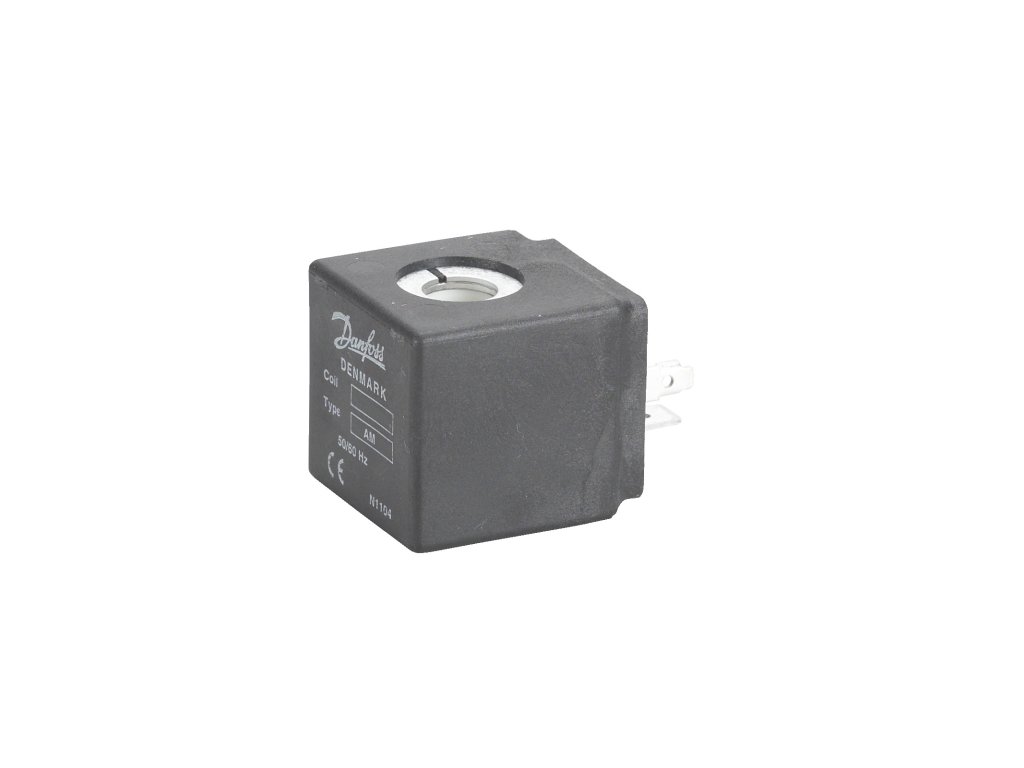

Cívka solenoidu, AM230C, Štítek DIN, Napájecí napětí [V] AC: 230, Multi balení
Kód: 042N0840Detailní popis produktu
Popis produktu není dostupný
Doplňkové parametry
| Kategorie: | BA, BD, BB, BE, BF, BG, BN, BO, BJ, BX, BY, BQ, AM, AZ, AS, AP |
|---|---|
| Hmotnost: | 0.1 kg |
| EAN: | 5702423049844 |
| Colour: | Černá |
| Type of accessory/spare part: | Other |
| Ambient temperature range [°F] [min]: | -40 |
| Actuator size: | 9 mm |
| Coil connection: | Štítek DIN |
| Electrical connection size: | 6.3 mm x 0.8 mm |
| Supply voltage [V] AC: | 230 |
| Supply voltage 60Hz Max [V]: | 230 |
| Packing format: | Multi balení |
| In scope of WEEE: | Yes |
| Power consumption 60Hz [VA]: | 13 |
| Power consumption [W] 50Hz: | 9.5 |
| Type designation: | AM230C |
| Power consumption [W] 60Hz: | 6.5 |
| REACH Candidate List substances: | No |
| Coil fastening: | Šroub dotahovaný prsty |
| Electrical connection standard: | EN175301-803 |
| Duty rating: | Trvalý |
| Supply voltage 50Hz Max [V]: | 230 |
| Contain batteries: | No |
| Coil winding insulation class: | Třída H podle normy IEC 85 |
| Frequency [Hz]: | 50/60 Hz |
| EU RoHS compliance: | Out of scope |
| Electrical connection: | Štítek DIN |
| Coil design standard: | VDE 0580 |
| Spare part: | TRUE |
| Serviceable: | Ne |
| Enclosure rating IP: | IP00 |
| Ambient temperature range [°C] [min]: | -40 |
| Ambient temperature range [°C] [max]: | 50 |
| Electrical connector: | 3 x štítky |
| Accessory: | TRUE |
| Product accessories: | Příslušenství cívky solenoidu |
| Power consumption 50Hz [VA]: | 18 |
| SCIP dossier product name: | Solenoid coils |
| Parts Program name: | EV210A |
| EEE category: | 5 small equipment (any external dimension <lt/> 50 cm) |
| Quantity per packing format: | 24 |
| Ambient temperature range [°F] [max]: | 122 |
-
Solenoid coils Type BA, BD, BB, BE, BF, BG, BN, BO, BJ, BX, BY, BQ, AM, AZ, AS and AP: Datový list
-
Solenoid coil Type AB, AM, AC, AK, AL, AP, BB, BA, BC and BD: Instalační příručka
-
