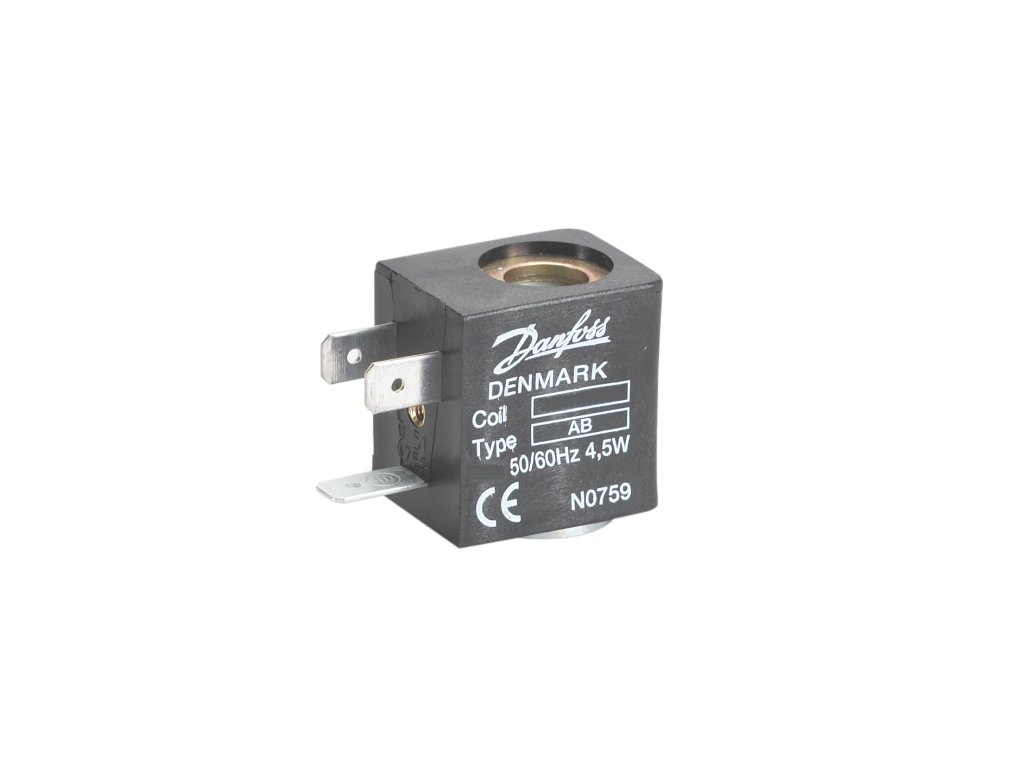

Cívka solenoidu, AB012C, Štítek DIN, Napájecí napětí [V] AC: 12, Multi balení
Kód: 042N0805Detailní popis produktu
Popis produktu není dostupný
Doplňkové parametry
| Kategorie: | AB |
|---|---|
| Hmotnost: | 0.05 kg |
| EAN: | 5702423064854 |
| Colour: | Černá |
| Type of accessory/spare part: | Other |
| Ambient temperature range [°F] [min]: | -40 |
| Actuator size: | 9 mm |
| Coil connection: | Štítek DIN |
| Electrical connection size: | 6.3 mm x 0.8 mm |
| Supply voltage [V] AC: | 12 |
| Supply voltage 60Hz Max [V]: | 12 |
| Packing format: | Multi balení |
| In scope of WEEE: | Yes |
| Power consumption [W] 50Hz: | 4.5 |
| Type designation: | AB012C |
| SCIP dossier no.: | 23785618-b379-4da7-a913-ecd40c8fae6d |
| Power consumption [W] 60Hz: | 4.5 |
| REACH Candidate List substances: | No |
| Coil fastening: | Šroub dotahovaný prsty |
| Electrical connection standard: | EN175301-803 |
| Supply voltage 50Hz Max [V]: | 12 |
| Contain batteries: | No |
| Frequency [Hz]: | 50/60 Hz |
| Electrical connection: | Štítek DIN |
| Spare part: | TRUE |
| Serviceable: | Ne |
| Enclosure rating IP: | IP00 |
| Ambient temperature range [°C] [min]: | -40 |
| Ambient temperature range [°C] [max]: | 50 |
| Electrical connector: | 3 x štítky |
| Accessory: | TRUE |
| Product accessories: | Příslušenství cívky solenoidu |
| SCIP dossier product name: | Solenoid coils |
| Parts Program name: | EV210A |
| EEE category: | 5 small equipment (any external dimension <lt/> 50 cm) |
| Quantity per packing format: | 24 |
| Ambient temperature range [°F] [max]: | 122 |
| Power consumption [W]: | 4.5 |
