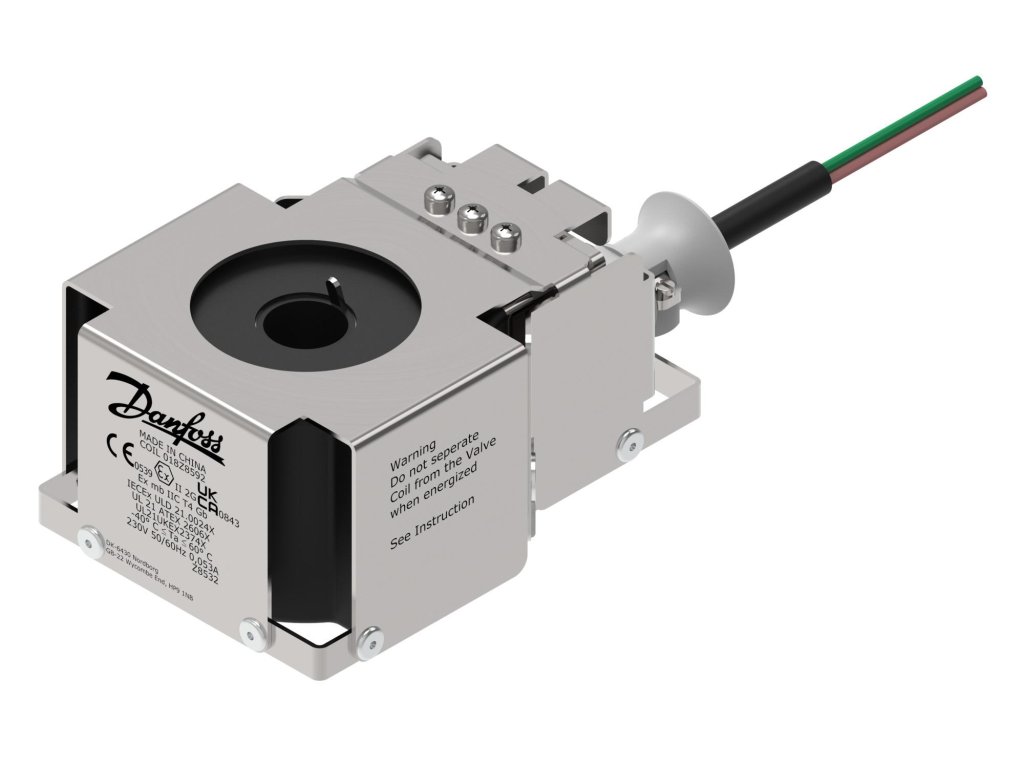

Cívka solenoidu, BI024C, Kabel, 5 m, Napájecí napětí [V] AC: 24, Multi balení
Kód: 018Z8588Detailní popis produktu
Popis produktu není dostupný
Doplňkové parametry
| Kategorie: | BI |
|---|---|
| Hmotnost: | 1.1 kg |
| EAN: | 5702424618537 |
| Conductor area [mm2]: | 3 x 0.75 mm2 |
| Colour: | Černá |
| Type of accessory/spare part: | Other |
| Electrical conn. comments: | Uzemnění, vodič <gt/> 4 mm2 |
| Ambient temperature range [°F] [min]: | -40 |
| Actuator size: | 13.5 mm |
| Cable length [m]: | 5.000 |
| EX Sales text: | -40C<lt/>ta<lt/>+40C |
| Coil connection: | Kabel |
| China RoHS compliance: | Out of scope |
| Supply voltage [V] AC: | 24 |
| Supply voltage 60Hz Max [V]: | 24 |
| Packing format: | Multi balení |
| In scope of WEEE: | Yes |
| Enclosure rating Nema (~): | 6 |
| Approval: | ATEX - Cat. 2 - Zone 1 |
| Power consumption [W] 50Hz: | 10.3 |
| Type designation: | BI024C |
| Power consumption [W] 60Hz: | 10.3 |
| REACH Candidate List substances: | No |
| Coil fastening: | Šroub dotahovaný prsty |
| Duty rating: | Trvalý |
| Rel. Humidity [% RH] [max]: | 97 |
| Supply voltage 50Hz Max [V]: | 24 |
| Contain batteries: | No |
| Rel. Humidity [% RH] [min]: | 0 |
| Coil winding insulation class: | Třída H podle normy IEC 85 |
| Frequency [Hz]: | 50/60 Hz |
| EU RoHS exemption clause: | No |
| EU RoHS compliance: | Yes |
| Electrical connection: | Kabel |
| Spare part: | TRUE |
| Serviceable: | Ne |
| Enclosure rating IP: | IP67 |
| Ambient temperature range [°C] [min]: | -40 |
| Cable length [in]: | 196.00 |
| Ambient temperature range [°C] [max]: | 40 |
| Electrical connector: | 3-žilový kabel |
| Accessory: | TRUE |
| Product accessories: | Příslušenství cívky solenoidu |
| Parts included: | Sada těsnění IP67 |
| Parts Program name: | AKV10P/PS |
| Earth connection: | Vnější svorka |
| EEE category: | 5 small equipment (any external dimension <lt/> 50 cm) |
| Quantity per packing format: | 10 |
| Ambient temperature range [°F] [max]: | 104 |
-
Solenoid coil Type BI: Datový list
-
Solenoid coil for control in potentially explosive areas Type BI: Instalační příručka
-
Solenoid coil for control in potentially explosive areas, Type BI: Instalační příručka
