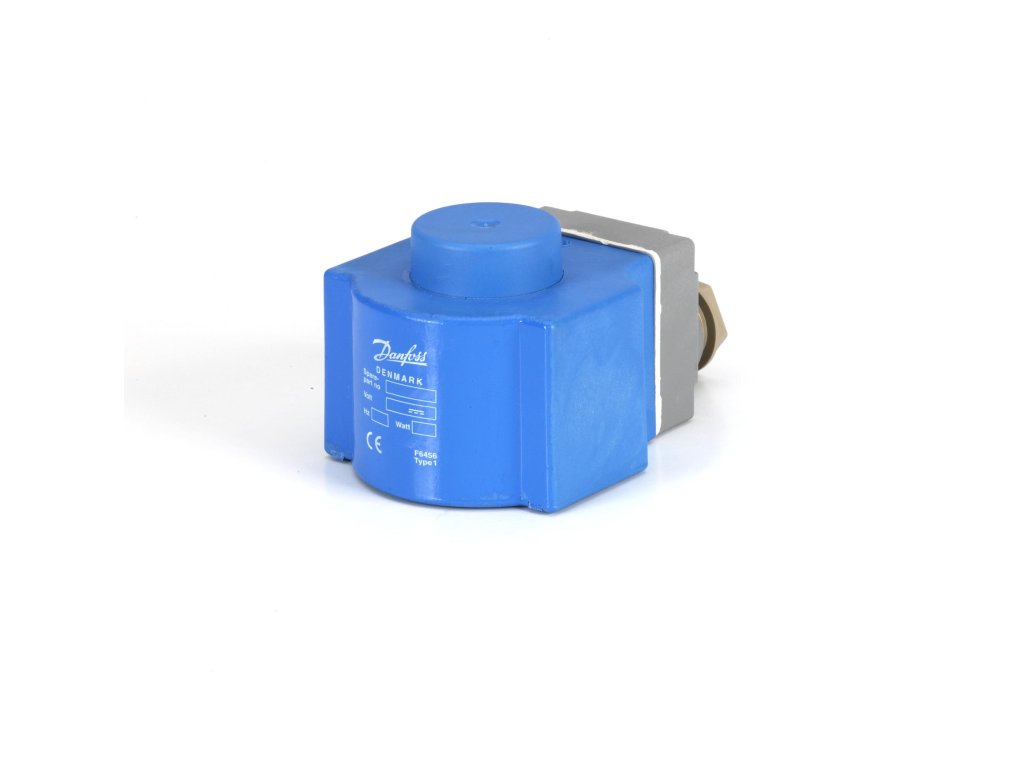

Cívka solenoidu, BG230AS, Svorkovnice, Napájecí napětí [V] AC: 220 - 230, Multi balení
Kód: 018F6801Detailní popis produktu
Popis produktu není dostupný
Doplňkové parametry
| Kategorie: | BB / BE / BF / BG / BN |
|---|---|
| Hmotnost: | 0.48 kg |
| EAN: | 5702428027304 |
| Colour: | Modrá |
| Type of accessory/spare part: | Other |
| Ambient temperature range [°F] [min]: | -40 |
| Actuator size: | 13.5 mm |
| Compliance: | EN 60730-1 |
| Coil connection: | Připojovací skříň |
| Electrical connection size: | Pg 13.5 |
| China RoHS compliance: | Out of scope |
| Spare part number: | 018F6801 |
| Packing format: | Multi balení |
| In scope of WEEE: | Yes |
| Enclosure rating Nema (~): | 6 |
| Approval: | CE |
| Supply voltage [V] AC [max]: | 230 |
| Power consumption [W] 50Hz: | 15.0 |
| Type designation: | BG230AS |
| REACH Candidate List substances: | No |
| Coil fastening: | Nacvakávací |
| Duty rating: | Trvalý |
| Rel. Humidity [% RH] [max]: | 100 |
| Supply voltage 50Hz Max [V]: | 230 |
| Contain batteries: | No |
| Rel. Humidity [% RH] [min]: | 0 |
| Coil winding insulation class: | Třída H podle normy IEC 85 |
| CE evaluated: | Yes |
| Frequency [Hz]: | 50 Hz |
| Identical product: | 018F8801 |
| EU RoHS compliance: | Out of scope |
| Electrical connection: | Svorkovnice |
| Coil design standard: | VDE 0580 |
| Supply voltage 50Hz Min [V]: | 220 |
| Spare part: | TRUE |
| Serviceable: | Ne |
| Enclosure rating IP: | IP67 |
| Ambient temperature range [°C] [min]: | -40 |
| Supply voltage [V] AC [min]: | 220 |
| Ambient temperature range [°C] [max]: | 80 |
| Electrical connector: | Přišroubovaný kabelový vstup |
| Accessory: | TRUE |
| Product accessories: | Příslušenství cívky solenoidu |
| Power consumption 50Hz [VA]: | 28 |
| SCIP dossier product name: | Solenoid coils |
| Parts Program name: | EV210B |
| Power cons Dual 50Hz [W]: | 13.0 |
| Power cons Dual 50Hz [VA]: | 25 |
| EEE category: | 5 small equipment (any external dimension <lt/> 50 cm) |
| Quantity per packing format: | 24 |
| Ambient temperature range [°F] [max]: | 175 |
-
