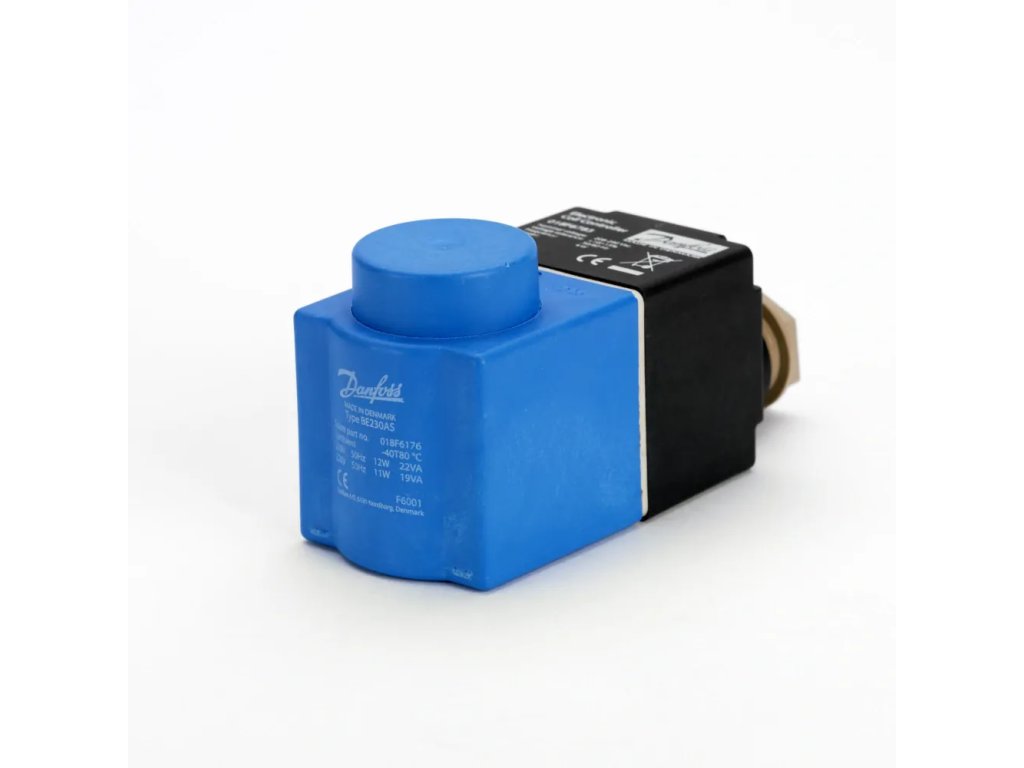

Cívka solenoidu, BE240CS, Svorkovnice, Napájecí napětí [V] AC: 208 - 240, Multi balení
Kód: 018F6783Detailní popis produktu
Popis produktu není dostupný
Doplňkové parametry
| Kategorie: | BB / BE / BF / BG / BN |
|---|---|
| Hmotnost: | 0.37 kg |
| EAN: | 5702428490207 |
| Colour: | Modrá |
| Type of accessory/spare part: | Other |
| Ambient temperature range [°F] [min]: | -13 |
| Actuator size: | 13.5 mm |
| Electrical connection size: | Pg 13.5 |
| China RoHS compliance: | Out of scope |
| Supply voltage 60Hz Max [V]: | 240 |
| Spare part number: | 018F6783 |
| Packing format: | Multi balení |
| In scope of WEEE: | Yes |
| Approval: | CE |
| Supply voltage [V] AC [max]: | 240 |
| Power consumption [W] 50Hz: | 4.0 |
| Type designation: | BE240CS |
| Power consumption [W] 60Hz: | 4.0 |
| REACH Candidate List substances: | No |
| Coil fastening: | Nacvakávací |
| Supply voltage 50Hz Max [V]: | 240 |
| Contains batteries: | No |
| CE evaluated: | Yes |
| Frequency [Hz]: | 50/60 Hz |
| Supply voltage 60Hz Min [V]: | 208 |
| EU RoHS compliance: | Out of scope |
| Electrical connection: | Svorkovnice |
| Supply voltage 50Hz Min [V]: | 208 |
| Spare part: | TRUE |
| Enclosure rating IP: | IP67 |
| Ambient temperature range [°C] [min]: | -25 |
| Supply voltage [V] AC [min]: | 208 |
| Ambient temperature range [°C] [max]: | 55 |
| Used for product: | AKV10, AKVH10 |
| Accessory: | TRUE |
| SCIP dossier product name: | AKV 20/EVR 32-40/EVRH 40 |
| Parts Program name: | EV210B |
| EEE category: | 5 small equipment (any external dimension <lt/> 50 cm) |
| Quantity per packing format: | 30 |
| Ambient temperature range [°F] [max]: | 130 |
-
Solenoid coils Type BA, BD, BB, BE, BF, BG, BN, BO, BJ, BX, BY, BQ, AM, AZ, AS and AP: Datový list
-
Solenoid coil Types BB, BE, BF, BG, and BN: Instalační příručka
-
Solenoid coil with electronic coil controller Type EEC: Instalační příručka
-
Przegląd Produktów AKPiA - katalog: Brožurka
-
Solenoid coil type BB, BE, BF, BG, and BN: Datový list
