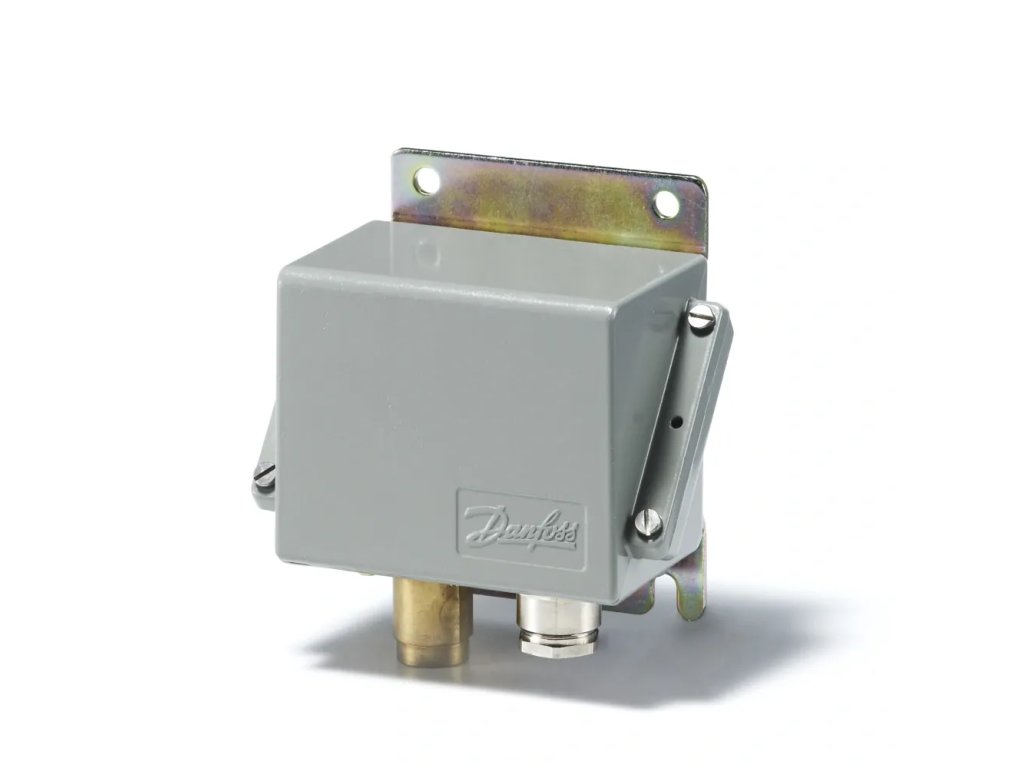

Presostat, CAS143
Kód: 060-316066Detailní popis produktu
Regul.rozsah [bar] Pe: 1 - 10, Dif. [bar]: 0.2 - 0.6, Typ tlakového připojení: G, velikost tlakové přípojky: 1/4, Hodnoceníkrytí IP: IP67, Max. provozní tlak [bar]: 120
Doplňkové parametry
| Kategorie: | CAS |
|---|---|
| Hmotnost: | 1.11 kg |
| EAN: | 5702423151691 |
| Burst pressure [bar]: | 240.0 |
| Differential [bar] [min]: | 0.20 |
| Electrical conn. comments: | Kovová kabelová průchodka |
| Ambient temperature range [°F] [min]: | -13 |
| Product description: | Presostat |
| Differential [psi] [max]: | 8.70 |
| Electrical connection size: | Pg 13.5 |
| China RoHS compliance: | Yes |
| Packing format: | Multi balení |
| Connection: | External thread cylindrical BSPP-G (ISO 228-1) |
| Approval: | ABS |
| Height: | 93 |
| Contact function: | SPDT |
| SCIP dossier no.: | 84be8326-1b95-4f87-afb0-90ae08b65f06 |
| Electrical conn. Male/Female: | VNĚJŠÍ |
| REACH Candidate List substances: | Lead (CAS no. 7439-92-1) |
| Electrical connection standard: | DIN 40430 |
| Contain batteries: | No |
| Pressure connection size: | 1/4 |
| Max. test pressure [psig]: | 2611.0 |
| Pressure connection standard: | ISO 228-1 |
| Width: | 141 |
| CE evaluated: | Yes |
| EU RoHS compliance: | Out of scope |
| Max. Working Pressure [bar]: | 120.0 |
| Electrical connection: | Přišroubovaný kabelový vstup |
| Max. operating pressure: | 120.0 |
| Pressure sensing element: | Membrána |
| Serviceable: | Ne |
| Enclosure rating IP: | IP67 |
| Ambient temperature range [°C] [min]: | -25 |
| Ambient temperature range [°C] [max]: | 70 |
| Regulation range [psig] Pe [min]: | 14.50 |
| Regulation range [bar] Pe [max]: | 10.00 |
| Degree of protection (IP): | IP67 |
| Max. test pressure [bar] Pe: | 180.0 |
| Product accessories: | Příslušenství spínače |
| Regulation range [bar] Pe [min]: | 1.00 |
| Pressure Male/Female: | VNĚJŠÍ |
| Differential [psi] [min]: | 2.90 |
| Depth: | 192 |
| Contact rating: | AC15=0.1 A, 220 V |
| Regulation range [psig] Pe [max]: | 145.00 |
| Quantity per packing format: | 8 |
| Ambient temperature range [°F] [max]: | 158 |
| Max. Working Pressure [psig]: | 1740 |
| Explosion-proof: | FALSE |
| Pressure connection type: | G |
| Differential [bar] [max]: | 0.60 |
| Thread size: | 1/4 inch |
-
