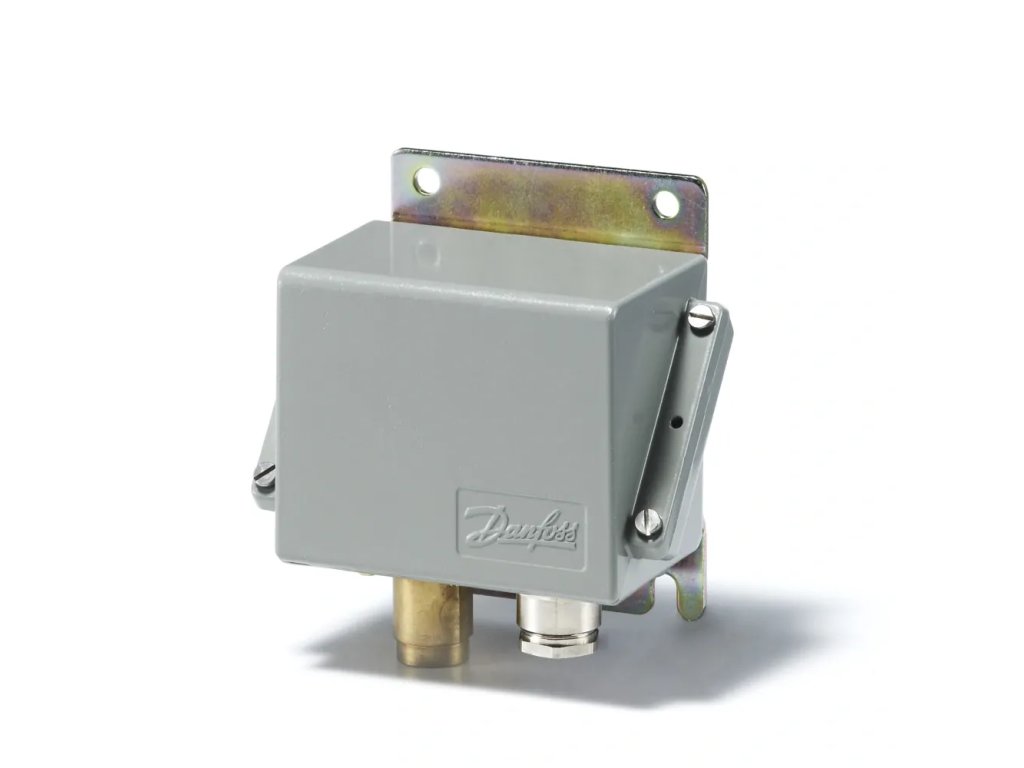

Presostat, CAS137
Kód: 060-315266Detailní popis produktu
Popis produktu není dostupný
Doplňkové parametry
| Kategorie: | CAS |
|---|---|
| Hmotnost: | 0.92 kg |
| EAN: | 5702423151714 |
| Burst pressure [bar]: | 72.0 |
| Differential [psi]: | 4.40 |
| Electrical conn. comments: | Kovová kabelová průchodka |
| Ambient temperature range [°F] [min]: | -40 |
| Product description: | Presostat |
| Electrical connection size: | Pg 13.5 |
| China RoHS compliance: | Yes |
| Packing format: | Multi balení |
| Connection: | External thread cylindrical BSPP-G (ISO 228-1) |
| Approval: | ABS |
| Height: | 93 |
| Contact function: | SPDT |
| SCIP dossier no.: | 84be8326-1b95-4f87-afb0-90ae08b65f06 |
| Electrical conn. Male/Female: | VNĚJŠÍ |
| REACH Candidate List substances: | Lead (CAS no. 7439-92-1) |
| Electrical connection standard: | DIN 40430 |
| Contain batteries: | No |
| Pressure connection size: | 1/4 |
| Max. test pressure [psig]: | 392.0 |
| Pressure connection standard: | ISO 228-1 |
| Width: | 141 |
| CE evaluated: | Yes |
| EU RoHS compliance: | Out of scope |
| Max. Working Pressure [bar]: | 27.0 |
| Electrical connection: | Přišroubovaný kabelový vstup |
| Max. operating pressure: | 27.0 |
| Pressure sensing element: | Vlnovec |
| Serviceable: | Ne |
| Enclosure rating IP: | IP67 |
| Ambient temperature range [°C] [min]: | -40 |
| Ambient temperature range [°C] [max]: | 70 |
| Regulation range [psig] Pe [min]: | 87.00 |
| Regulation range [bar] Pe [max]: | 18.00 |
| Degree of protection (IP): | IP67 |
| Max. test pressure [bar] Pe: | 27.0 |
| Product accessories: | Příslušenství spínače |
| Regulation range [bar] Pe [min]: | 6.00 |
| Pressure Male/Female: | VNĚJŠÍ |
| Depth: | 192 |
| Contact rating: | AC15=0.1 A, 220 V |
| Regulation range [psig] Pe [max]: | 261.00 |
| Quantity per packing format: | 8 |
| Ambient temperature range [°F] [max]: | 158 |
| Differential [bar]: | 0.30 |
| Max. Working Pressure [psig]: | 392 |
| Explosion-proof: | FALSE |
| Pressure connection type: | G |
| Thread size: | 1/4 inch |
-
