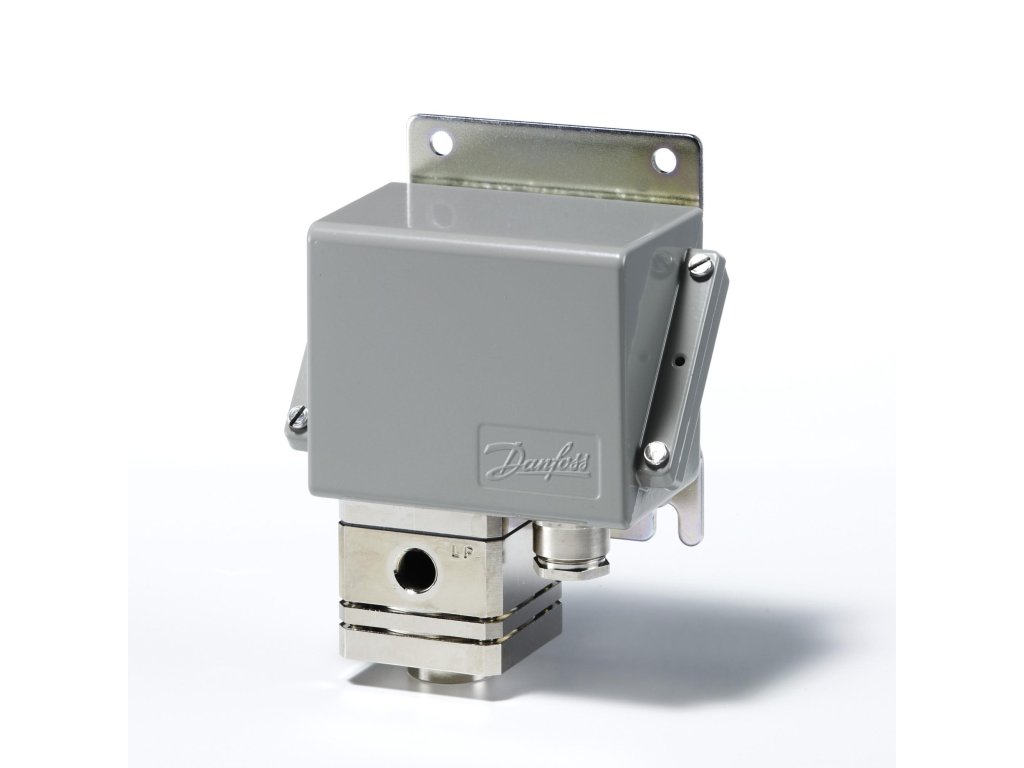

Diferenční presostat, CAS155
Kód: 060-313066Detailní popis produktu
Popis produktu není dostupný
Doplňkové parametry
| Kategorie: | CAS |
|---|---|
| Hmotnost: | 1.55 kg |
| EAN: | 5702423151646 |
| Burst pressure [bar]: | 42.0 |
| Electrical conn. comments: | Kovová kabelová průchodka |
| Diff.press.setting range [bar] [max]: | 2.50 |
| Ambient temperature range [°F] [min]: | -13 |
| Operat. range LP side [bar] Pe [max]: | 8 |
| Electrical connection size: | Pg 13.5 |
| Connection: | External thread cylindrical BSPP-G (ISO 228-1) |
| Height: | 93 |
| Contact function: | SPDT |
| SCIP dossier no.: | 84be8326-1b95-4f87-afb0-90ae08b65f06 |
| Pressure connection size: | 1/4 |
| Max. test pressure [psig]: | 319.0 |
| Pressure connection standard: | ISO 228-1 |
| Width: | 141 |
| Contact differential [bar]: | 0.10 |
| Electrical connection: | Přišroubovaný kabelový vstup |
| Max. operating pressure: | 22.0 |
| Serviceable: | Ne |
| Reset function: | Auto |
| Enclosure rating IP: | IP67 |
| Ambient temperature range [°C] [min]: | -25 |
| Max. test pressure [bar] Pe: | 22.0 |
| Product accessories: | Obecné příslušenství |
| Pressure Male/Female: | VNĚJŠÍ |
| Operat. range LP side [psig]Pe [max]: | 115 |
| Depth: | 192 |
| Contact rating: | AC15=0.1 A, 220 V |
| Pressure connection type: | G |
| Thread size: | 1/4 inch |
| Diff.press.setting range [MPa] [min]: | 0.02 |
| Operat. range LP side [psig]Pe [min]: | 0 |
| Product description: | Dif. Presostat |
| China RoHS compliance: | Out of scope |
| Operat. range LP side [bar] Pe [min]: | 0 |
| Packing format: | Multi balení |
| Approval: | ABS |
| Diff.press.setting range [bar] [min]: | 0.20 |
| Diff.press.setting range [MPa] [max]: | 0.25 |
| Electrical conn. Male/Female: | VNĚJŠÍ |
| REACH Candidate List substances: | Lead (CAS no. 7439-92-1) |
| Electrical connection standard: | DIN 40430 |
| Contain batteries: | No |
| CE evaluated: | Yes |
| EU RoHS compliance: | Out of scope |
| Max. Working Pressure [bar]: | 22.0 |
| Diff.press.setting range [psi] [max]: | 36.2 |
| Ambient temperature range [°C] [max]: | 70 |
| Diff.press.setting range [psi] [min]: | 2.9 |
| Degree of protection (IP): | IP67 |
| Relay release time [s]: | 0 |
| Quantity per packing format: | 8 |
| Ambient temperature range [°F] [max]: | 158 |
| Max. Working Pressure [psig]: | 319 |
| Explosion-proof: | FALSE |
-
