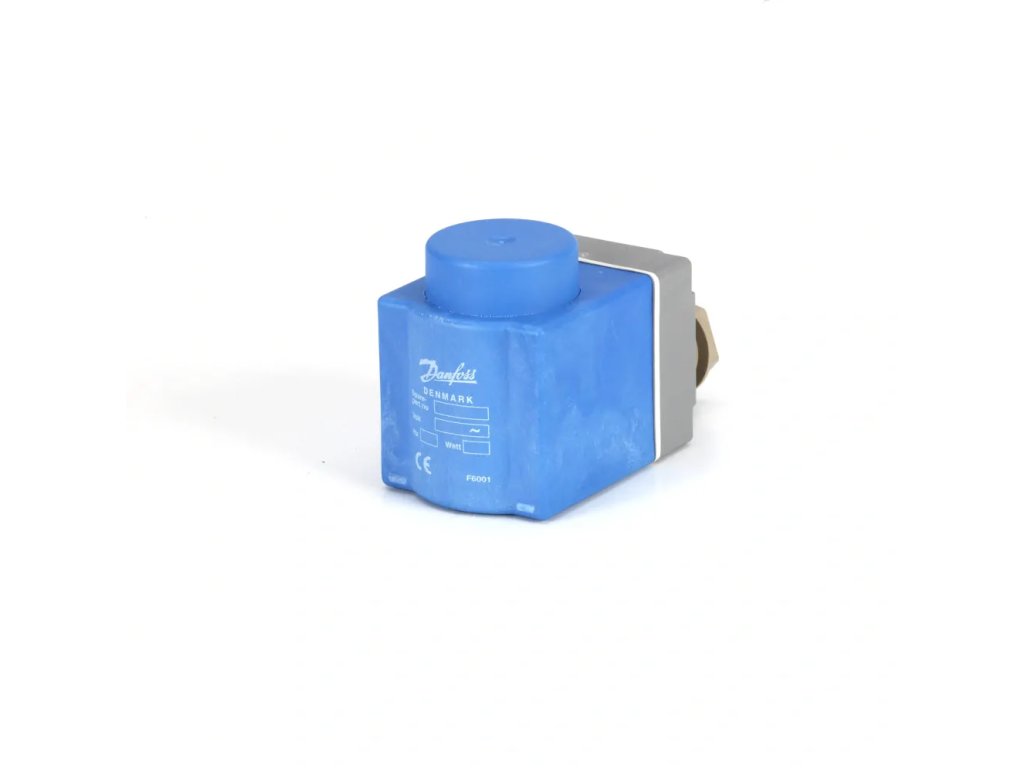

Magnetic coils, BE012DS
Kód: 018F7913Detailní popis produktu
Elektrické připojení: Svorkovnice, Hodnoceníkrytí IP: IP67
Doplňkové parametry
| Kategorie: | Cívky |
|---|---|
| Hmotnost: | 0.32 kg |
| EAN: | 5702428074421 |
| Conductor area [mm2]: | 0.75 - 1.5 mm2 |
| Colour: | Modrá |
| Type of accessory/spare part: | Other |
| Actuator size [mm]: | 13.5 |
| Product description: | Magnetic coils |
| Compliance: | EN 60730-1 |
| Coil connection: | Připojovací skříň |
| Electrical connection size: | Pg 13.5 |
| Packing format: | Multi balení |
| In scope of WEEE: | Yes |
| Approval: | LLC CDC TYSK |
| Color: | Blue |
| Height: | 47 |
| Type designation: | BE012DS |
| SCIP dossier no.: | e1534687-9129-4796-8151-656dd16d6529 |
| REACH Candidate List substances: | Lead (CAS no. 7439-92-1) |
| Coil fastening: | Nacvakávací |
| Duty rating: | Trvalý |
| Contain batteries: | No |
| Rel. Humidity [% RH] [min]: | 0 |
| Coil winding insulation class: | Třída H podle normy IEC 85 |
| Width: | 70 |
| Cable diameter [mm]: | 6.0 |
| Frequency [Hz]: | DC |
| Electrical connection: | Svorkovnice |
| Coil design standard: | VDE 0580 |
| Spare part: | TRUE |
| Serviceable: | Ne |
| Enclosure rating IP: | IP67 |
| Ambient temperature range [°C]: | 50 |
| Power consumption [W] DC: | 15.0 |
| Accessory: | TRUE |
| Product accessories: | Příslušenství cívky solenoidu |
| SCIP dossier product name: | RD |
| Parts Program name: | EV210B |
| EEE category: | 5 small equipment (any external dimension <lt/> 50 cm) |
| Ambient temperature range [°F]: | 120 |
| Quantity per packing format: | 32 |
-
