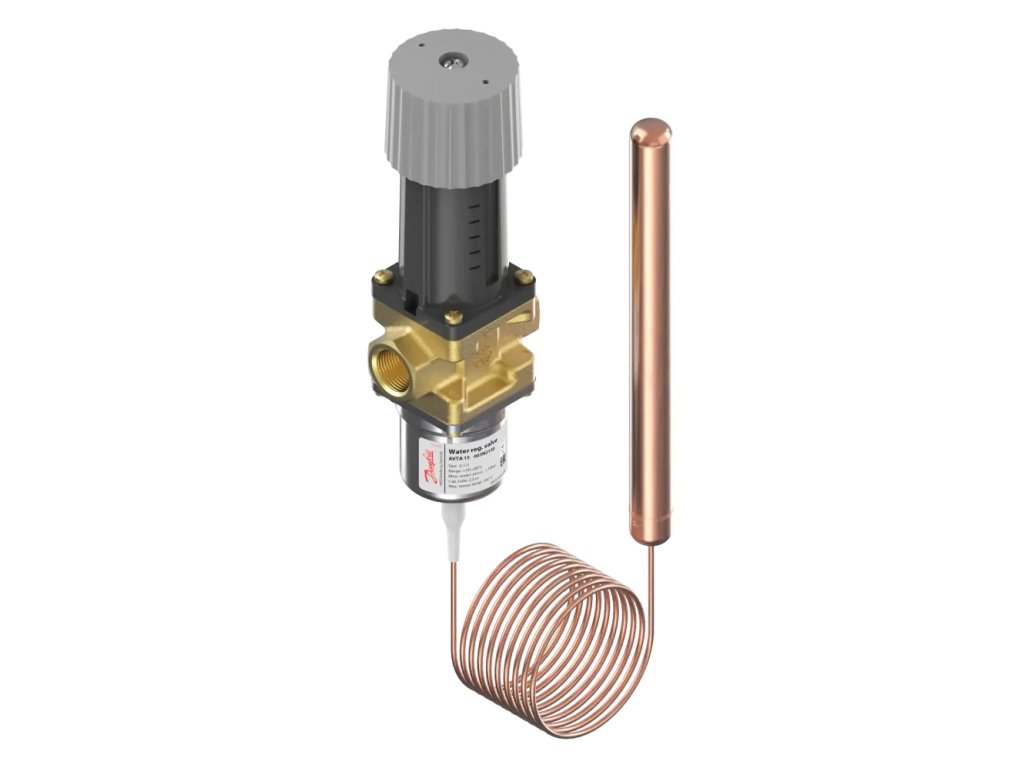

Tepelně ovládaný vodní ventil, AVTA 25, G, 1
Kód: 003N4182Detailní popis produktu
Popis produktu není dostupný
Doplňkové parametry
| Kategorie: | Ventily AVTA |
|---|---|
| Hmotnost: | 1.42 kg |
| EAN: | 5702423024650 |
| Medium temperature range [°C] [max]: | 130 |
| Cap. tube length fraction [in]: | 78 3/4 in |
| Max. sensor temperature [°F]: | 257.0 |
| Connection standard: | ISO 228-1 |
| SCIP dossier no.: | a698bb81-6c39-4d14-a29f-0fc686728af9 |
| Charge type: | Univerzální |
| Max. test pressure [psig]: | 362.6 |
| Capillary tube gland type: | G |
| Medium temperature range [°C] [min]: | -25 |
| Capillary tube gland standard: | ISO 228-1 |
| Max. pressure on sensor [bar]: | 25 |
| Temperature range [°F] [min]: | 122 |
| Connection Internal/External: | Vnitřní |
| Serviceable: | Náhradní díly vodního ventilu |
| Capillary tube gland size [in]: | 3/4 |
| Suitable for cooling: | FALSE |
| Max. test pressure [bar] Pe: | 25.0 |
| Product accessories: | Obecné příslušenství |
| Connection type: | G |
| Connection size [in]: | 1 |
| Sensor size (Ø x L) [in]: | 23/32 x 8 1/4 in |
| Body material: | Mosaz |
| Differential pressure [psi] [min]: | 0.000 |
| Capillary tube gland Int/Ext: | Vnitřní |
| Orifice size [mm]: | 25.00 |
| Suitable for heating: | TRUE |
| Medium temperature range [°F] [min]: | -13 |
| Max. pressure on sensor [psig]: | 362.6 |
| Cv value [gal/min]: | 6.400 |
| China RoHS compliance: | Yes |
| Packing format: | Multi balení |
| Max. sensor temperature [°C]: | 125 |
| Kv value [m³/h]: | 5.500 |
| Approval: | EAC |
| Differential pressure [bar] [min]: | 0.000 |
| REACH Candidate List substances: | Lead (CAS no. 7439-92-1) |
| Differential pressure [bar] [max]: | 10.000 |
| Opening configuration: | Otevření při vzrustající teplotě čidla tepl. |
| Contains batteries: | No |
| Media: | Neutrální média |
| EU RoHS exemption clause: | 6(b) |
| EU RoHS compliance: | Yes with exemptions |
| Max. Working Pressure [bar]: | 16.0 |
| Medium temperature range [°F] [max]: | 266 |
| Sensor size (Ø x L) [mm]: | 18 x 210 mm |
| Orifice size fraction [in]: | 1 in |
| Flow direction indicator: | Vyražená jednosměrná šipka |
| Differential pressure [psi] [max]: | 145.000 |
| Temperature range [°F] [max]: | 194 |
| SCIP dossier product name: | AVTA FJVA |
| Temperature range [°C] [min]: | 50 |
| Temperature range [°C] [max]: | 90 |
| Quantity per packing format: | 10 |
| Max. Working Pressure [psig]: | 232 |
| Capillary tube length [mm]: | 2000 |
-
