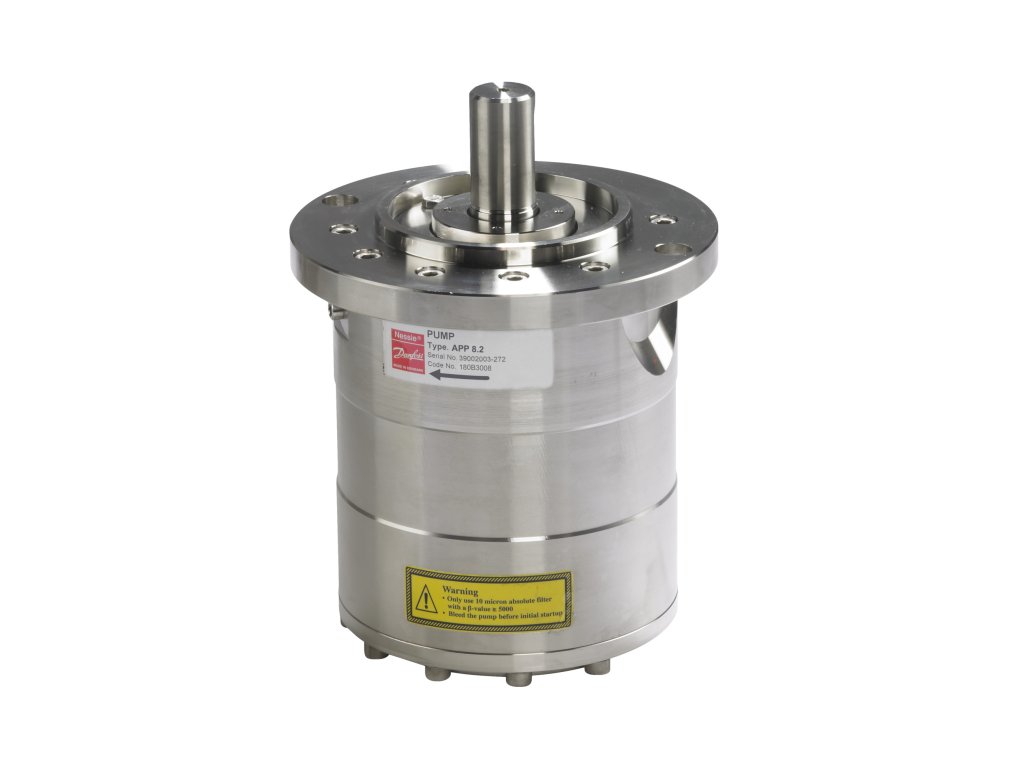

APP pumps, APP 8.2
Kód: 180B3008Detailní popis produktu
Popis produktu není dostupný
Doplňkové parametry
| Kategorie: | APP 0.6-46 |
|---|---|
| Hmotnost: | 33.97 kg |
| EAN: | 5715162667682 |
| Flow [gpm] [Min]: | 13.000 |
| Outlet connection standard: | Metrický |
| Inlet connection standard: | Metrický |
| Outside dimensions of packaging LxWxH [in]: | 14,9x11,8x11,8 |
| Outlet pressure [barg] [Max]: | 83 |
| Outside dimensions of packaging LxWxH [mm]: | 380x300x300 |
| Outlet connection type: | Závit |
| Cable length: | 0 |
| Outlet pressure [barg] [Min]: | 20 |
| UL evaluated: | Out of scope |
| Media temperature [°F] [Max]: | 122 |
| Media temperature [°F] [Min]: | 36 |
| Displacement [in³/rev]: | 4.91 |
| Speed [rpm] [Max]: | 1800 |
| Speed continuous [rpm] [Min]: | 700 |
| Speed [rpm] [Min]: | 700 |
| Sound pressure level [dB(A)]: | 78 |
| Outlet pressure [psig] [Max]: | 1200 |
| Weight: | 36.06 |
| Flow [l/min] [Max]: | 138.50 |
| Outlet pressure [psig] [Min]: | 290 |
| Flow [l/min] [Min]: | 50.00 |
| Flow [gpm] [Max]: | 36.000 |
| Serviceable: | Ano |
| Seal Material: | NBR |
| Drain connection standard: | Metrický |
| Country of origin: | Dánsko |
| Ambient temperature [°C] [max]: | 50 |
| Body material: | Duplex |
| Drain connection type: | Závit |
| Media temperature [°C] [Min]: | 2 |
| Flow [m³/h] [Min]: | 3.00 |
| Product description: | APP pumps |
| Inlet pressure [psig] [Max]: | 72.5 |
| China RoHS compliance: | Out of scope |
| Inlet pressure [psig] [Min]: | 7.3 |
| Ambient temperature [°C] [min]: | 0 |
| In scope of WEEE: | No |
| Approval: | CE |
| Type designation: | APP 8.2 |
| REACH Candidate List substances: | No |
| Contains batteries: | No |
| CE evaluated: | Yes |
| Ambient temperature [°F] [min]: | 32 |
| EU RoHS compliance: | Out of scope |
| Media temperature [°C] [Max]: | 50 |
| Flow [m³/h] [Max]: | 8.30 |
| Medium temperature (continuous): | 50-50 |
| Inlet pressure peak [psig] [Max]: | 73 |
| Inlet pressure peak [barg] [Max]: | 5 |
| Inlet pressure [barg] [Max]: | 5.0 |
| Inlet pressure [barg] [Min]: | 0.5 |
| Outlet connection size (metric): | M42 |
| ATEX compliance: | No |
| Displacement [cm³/rev]: | 80.40 |
| Drain connection size (metric): | M6 |
| Inlet connection size (metric): | M42 |
| Inlet connection type: | Závit |
| Explosion-proof: | FALSE |
| Ambient temperature [°F] [max]: | 122 |
-
APP 0.6-46 pumps data sheet: Datový list
-
APP and iSave overload protection: Konstrukční příručka
-
Piping connections: Konstrukční příručka
-
Trouble shooting APP and iSave in a SWRO plant: Servisní příručka
-
Parallel coupled APP pumps and iSave energy recovery device: Konstrukční příručka
-
TDR relies on efficient Danfoss APP pumps for profitability at ZLD wastewater treatment facility: Popis řešení
-
APP (W) 5.1-10.2 Disassembling and assembling: Servisní příručka
-
Claim and repair guide for APP 5.1 - 10.2: Servisní příručka
-
Reclaim and repair questionairy: Servisní příručka
-
Danfoss pump for the Royal Navy´s aircraft carriers: Popis řešení
-
Pressure Safety Valve in a seawater RO system: Konstrukční příručka
-
TSG chooses only Danfoss pumps and drives - because operating margins matter: Popis řešení
-
APP ((W) 5.1-10.2: Provozní příručka
-
APP (W) 5.1-10.2: Instalační příručka
