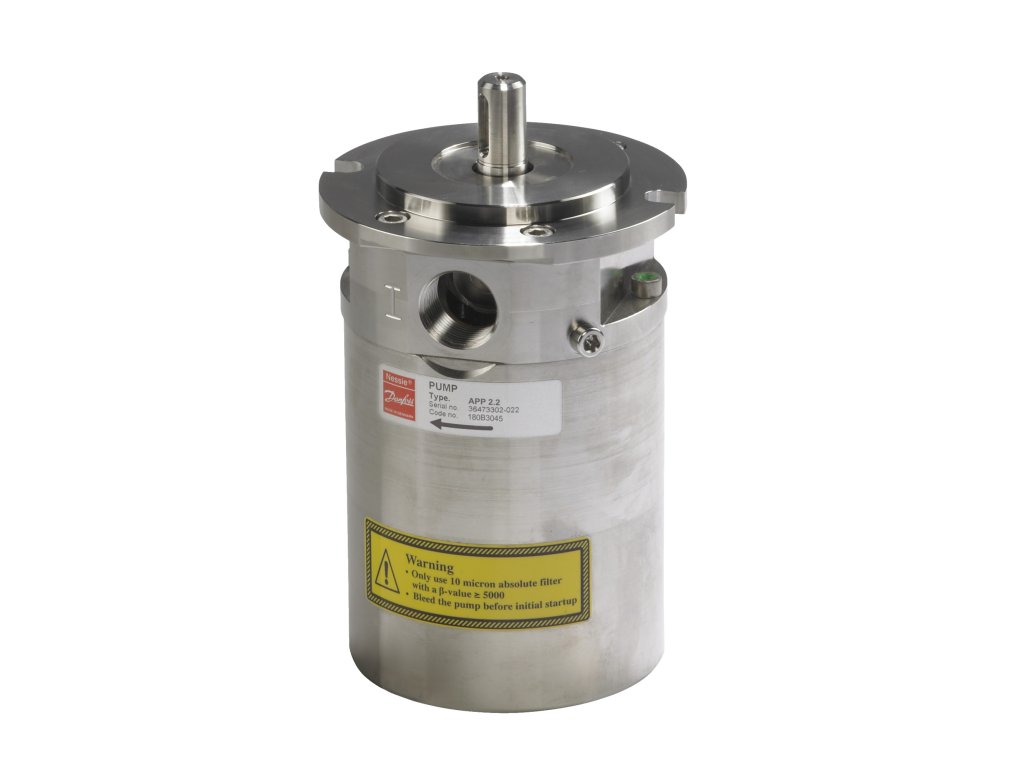

APP pumps, APP 2.2 Ex
Kód: 180B3145Detailní popis produktu
Popis produktu není dostupný
Doplňkové parametry
| Kategorie: | APP 0.6-46 |
|---|---|
| Hmotnost: | 8.31 kg |
| EAN: | 5702428756839 |
| Flow [gpm] [Min]: | 1.900 |
| Outlet connection standard: | BSPP |
| Inlet connection standard: | BSPP |
| Outside dimensions of packaging LxWxH [in]: | 10,7x5,9x5,4 |
| Outlet pressure [barg] [Max]: | 83 |
| Outside dimensions of packaging LxWxH [mm]: | 274x151x137 |
| Outlet connection type: | Závit |
| Cable length: | 0 |
| Outlet pressure [barg] [Min]: | 20 |
| UL evaluated: | Out of scope |
| Media temperature [°F] [Max]: | 122 |
| Media temperature [°F] [Min]: | 36 |
| Displacement [in³/rev]: | 0.76 |
| Speed [rpm] [Max]: | 3450 |
| Speed continuous [rpm] [Min]: | 700 |
| Speed [rpm] [Min]: | 700 |
| Sound pressure level [dB(A)]: | 77 |
| Outlet pressure [psig] [Max]: | 1200 |
| Weight: | 9.08 |
| Flow [l/min] [Max]: | 41.90 |
| Outlet pressure [psig] [Min]: | 290 |
| Flow [l/min] [Min]: | 7.40 |
| Flow [gpm] [Max]: | 10.900 |
| Serviceable: | Ano |
| Seal Material: | NBR |
| Drain connection standard: | Metrický |
| Country of origin: | Dánsko |
| Ambient temperature [°C] [max]: | 50 |
| Body material: | Duplex |
| Drain connection type: | Závit |
| Media temperature [°C] [Min]: | 2 |
| Flow [m³/h] [Min]: | 0.40 |
| Outlet connection size [in]: | 3/4 in |
| Product description: | APP pumps |
| Inlet pressure [psig] [Max]: | 72.5 |
| China RoHS compliance: | Out of scope |
| Inlet pressure [psig] [Min]: | 7.3 |
| Ambient temperature [°C] [min]: | 0 |
| In scope of WEEE: | No |
| Approval: | CE |
| Type designation: | APP 2.2 Ex |
| REACH Candidate List substances: | No |
| Inlet connection size [in]: | 3/4 in |
| Contain batteries: | No |
| CE evaluated: | Yes |
| Ambient temperature [°F] [min]: | 32 |
| EU RoHS compliance: | Out of scope |
| Media temperature [°C] [Max]: | 50 |
| Flow [m³/h] [Max]: | 2.50 |
| Medium temperature (continuous): | 50-50 |
| Inlet pressure peak [psig] [Max]: | 145 |
| Inlet pressure peak [barg] [Max]: | 10 |
| Inlet pressure [barg] [Max]: | 5.0 |
| Inlet pressure [barg] [Min]: | 0.5 |
| ATEX compliance: | Ex II 2G cb T6 / Ex II 3G c T6 |
| Displacement [cm³/rev]: | 12.52 |
| Drain connection size (metric): | M6 |
| Inlet connection type: | Závit |
| Explosion-proof: | FALSE |
| Ambient temperature [°F] [max]: | 122 |
-
APP pump instruction APP 0.6-1.0, APP 1.5-2.5, APP 3.0-3.5: Instalační příručka
-
APP 1.5 - 3.5 Operation guide: Provozní příručka
-
APP 0.6-46 pumps data sheet: Datový list
-
APP and iSave overload protection: Konstrukční příručka
-
Claim and repair guide for APP 0.6 - 3.5: Servisní příručka
-
Piping connections: Konstrukční příručka
-
Trouble shooting APP and iSave in a SWRO plant: Servisní příručka
-
Parallel coupled APP pumps and iSave energy recovery device: Konstrukční příručka
-
TDR relies on efficient Danfoss APP pumps for profitability at ZLD wastewater treatment facility: Popis řešení
-
Reclaim and repair questionairy: Servisní příručka
-
ATEX instruction for APP 0.6-10.2 Ex / PAH 2-100 Ex / PAHT C 2-6.3 Ex / PAHT G 2-308 Ex: Instalační příručka
-
Pressure Safety Valve in a seawater RO system: Konstrukční příručka
-
APP 1.5 - 3.5 Disassembling and assembling: Servisní příručka
-
TSG chooses only Danfoss pumps and drives - because operating margins matter: Popis řešení
