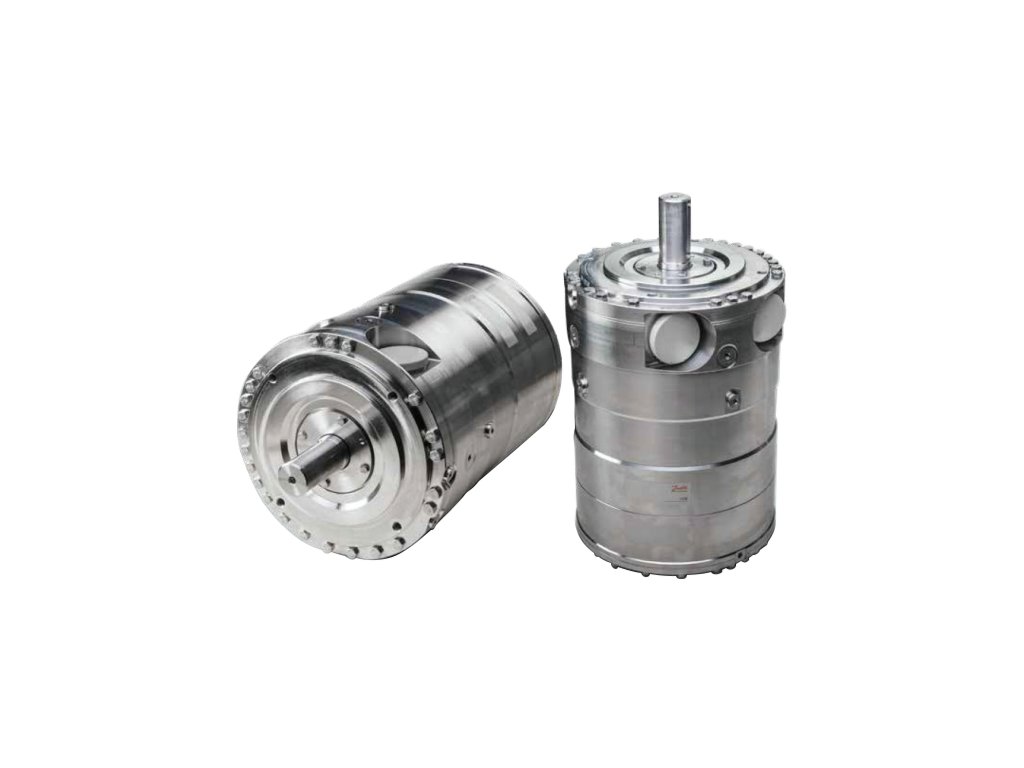

APP pump with ceramic, APP 30/1200
Kód: 180B5007Detailní popis produktu
Průtok [gpm] [Max]: 137.6, Průtok [l/min] [Max]: 521.5, Výstup - tlak [barg] [Max]: 83, Výstup - tlak [psig] [Max]: 1200, Otáčky[rpm] [max.]: 1200, Otáčky [rpm] [min.]: 600
Doplňkové parametry
| Kategorie: | APP 21-38 keramické |
|---|---|
| Hmotnost: | 112 kg |
| EAN: | 5715162513415 |
| Media temperature [°C] [Min]: | 2 |
| Outlet connection standard: | Metrický |
| Inlet connection standard: | Metrický |
| Product description: | APP pump with ceramic |
| Outside dimensions of packaging LxWxH [in]: | 21,2x12,1x12,9 |
| Outlet pressure [barg] [Max]: | 83 |
| Outside dimensions of packaging LxWxH [mm]: | 540x308x328 |
| Outlet connection type: | Závit |
| China RoHS exemption clause: | No |
| Inlet pressure [psig] [Max]: | 72.5 |
| Outlet pressure [barg] [Min]: | 20 |
| China RoHS compliance: | Yes |
| Inlet pressure [psig] [Min]: | 29.0 |
| Ambient temperature [°C] [min]: | 0 |
| UL evaluated: | Out of scope |
| In scope of WEEE: | No |
| Media temperature [°F] [Max]: | 122 |
| Approval: | CE |
| Media temperature [°F] [Min]: | 36 |
| Displacement [in³/rev]: | 27.09 |
| Drain connection size [in]: | 0.250 |
| Type designation: | APP 30/1200 |
| Speed [rpm] [Max]: | 1200 |
| REACH Candidate List substances: | No |
| Speed [rpm] [Min]: | 600 |
| Sound pressure level [dB(A)]: | 85 |
| Contain batteries: | No |
| Outlet pressure [psig] [Max]: | 1200 |
| CE evaluated: | Yes |
| Ambient temperature [°F] [min]: | 32 |
| Flow [l/min] [Max]: | 521.50 |
| EU RoHS exemption clause: | No |
| Outlet pressure [psig] [Min]: | 290 |
| EU RoHS compliance: | Yes |
| Media temperature [°C] [Max]: | 50 |
| Flow [gpm] [Max]: | 137.600 |
| Serviceable: | Ano |
| Seal Material: | NBR |
| Drain connection standard: | BSPP |
| Inlet pressure peak [psig] [Max]: | 145 |
| Inlet pressure peak [barg] [Max]: | 10 |
| Country of origin: | Dánsko |
| Inlet pressure [barg] [Max]: | 5.0 |
| Inlet pressure [barg] [Min]: | 2.0 |
| Ambient temperature [°C] [max]: | 50 |
| Outlet connection size (metric): | M60 |
| ATEX compliance: | No |
| Displacement [cm³/rev]: | 444.00 |
| Body material: | Duplex |
| Inlet connection size (metric): | M60 |
| Drain connection type: | Závit |
| Ceramic robustness level: | 2 |
| Inlet connection type: | Závit |
| Ambient temperature [°F] [max]: | 122 |
-
Disassembling and Assembling guide for APP 30 and APP 38 with Ceramics: Servisní příručka
-
Installation, Operation and Maintenance Manual for APP 30 and APP 38 with Ceramics: Provozní příručka
-
Instruction APP 30 and APP 38 with Ceramics: Instalační příručka
-
APP 21-38 with ceramics: Servisní příručka
-
APP 21-38 with Ceramics: Datový list
